Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK/Purple

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK/Purple

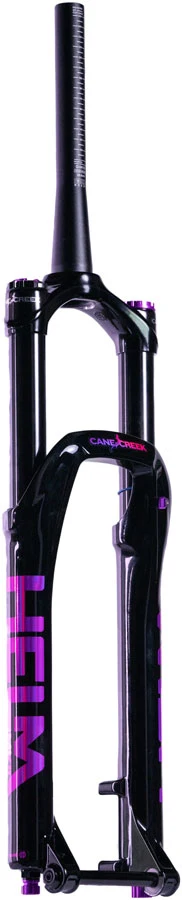

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss Black/Purple. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
  • Compression and midvalve circuit offer increased support and control
  • SKF oil seal head cartridge and wiper seals are low friction
  • The redesigned air spring offers increased air volume for better traction and suppleness
  • The threadless air seal head allows for easier travel change
  • Damping features include: high speed compression low speed compression and low speed rebound

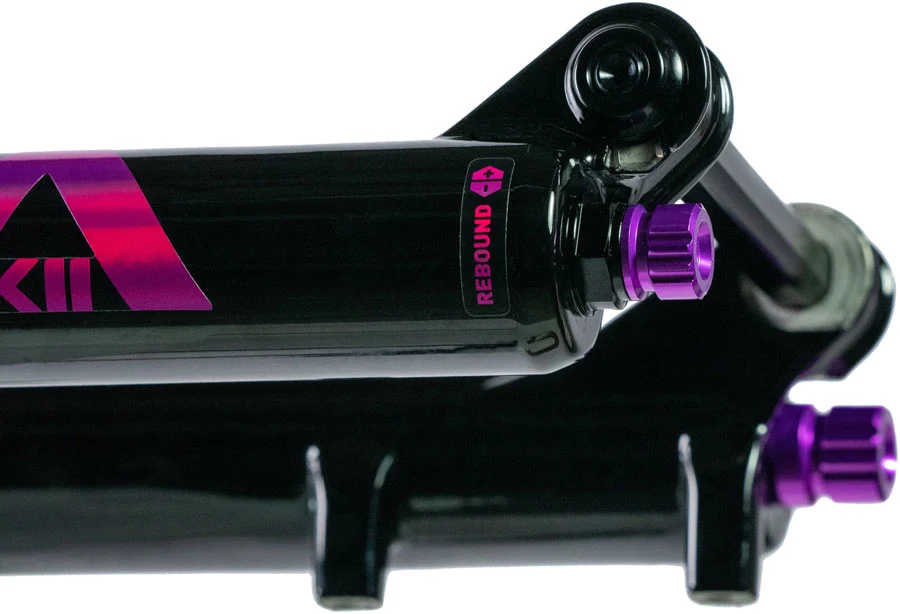

  • Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
  • Double-Air spring system: high volume positive and negative air springs
  • "D-Loc" 15mm bolt-on thru axle
    • TECH SPECS
    Steerer Type TaperedBrake Type Post Mount 180Negative Spring AirTravel (mm) 160Offset 44Axle to Crown Length 573Front Axle 15mm Thru x 110mmMaximum Tire Width 65S.H.I.S. Stem Clamp Diameter 28.6Color Black/PurpleCrown Race 40Weight 2080Wheel Size 29"External Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingDefined Color BlackPositive Spring AirStanchion Diameter 35Steerer Tube Length (mm) 265
    $385.00

    Original: $1,099.99

    -65%
    Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK/Purple—

    $1,099.99

    $385.00

    Product Information

    Shipping & Returns

    Description

    Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss Black/Purple. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
  • Compression and midvalve circuit offer increased support and control
  • SKF oil seal head cartridge and wiper seals are low friction
  • The redesigned air spring offers increased air volume for better traction and suppleness
  • The threadless air seal head allows for easier travel change
  • Damping features include: high speed compression low speed compression and low speed rebound
  • Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
  • Double-Air spring system: high volume positive and negative air springs
  • "D-Loc" 15mm bolt-on thru axle
    • TECH SPECS
    Steerer Type TaperedBrake Type Post Mount 180Negative Spring AirTravel (mm) 160Offset 44Axle to Crown Length 573Front Axle 15mm Thru x 110mmMaximum Tire Width 65S.H.I.S. Stem Clamp Diameter 28.6Color Black/PurpleCrown Race 40Weight 2080Wheel Size 29"External Adjustments High Speed Compression DampingExternal Adjustments Low Speed Compression DampingExternal Adjustments Rebound DampingDefined Color BlackPositive Spring AirStanchion Diameter 35Steerer Tube Length (mm) 265
